Multi-well microplate format
NEXTERION® MPX-96 microarraying products
The microtiter plate format is a standard research tool for clinical diagnostics and drug discovery. The advantages associated with this format are obvious and include, high sample throughput, cost savings and compatibility with automated handling systems. In recent years, there have been efforts to make the microplate format available for microarraying with the emergence of highresolution plate scanners and compatible arrayers. However, there are clearly a number of limitations with the conventional 96-well polymeric and glass bottom microtiter plates currently being utilized in microarraying, including:
-
Microarray print heads cannot access the entire well area because the wells are recessed. This limits the number of features per well and arrayer compatibility.
-
The depth of the wells, and the subsequent additional z-axis travel, makes printing time consuming.
-
The intra-well print area may be restricted due to the contamination of the well edges with bonding adhesive. In addition, adhesive out gassing can affect functional coating performance.
-
The round wells have a smaller printable area than the square MPX-96 wells.
-
Difficulty associated with applying functional coatings to plastic plates.
-
Conventional plastic microplates suffer from poor optical transparency and flatness
Overview
Key product features
|
• SBS compilant microplate format
|
|
• Glass plate easily detaches from the plate holder for spotting and scanning flexibility
|
|
• Maximum printable area of 6 mm x 6 mm allows over 1600 features per well
|
|
• High optical transmission and low auto fluorescence glass for optimal performance
|
|
• Available as a complete microtiter plate, or as individual components with or without well patterning and/or functional chemistry
|
|
• Compatible with all contact or non-contact microplate arrayers
|
Immobilization chemistry
NEXTERION® multi-well plates are available with several NEXTERION® functional coatings
This coating is identical to the respective coating on NEXTERION® Slides. Please refer to the table in the section “General information coated slides” in order to find the appropriate coating chemistry for your specific application.
Product details
NEXTERION® multi-well plates are available with several NEXTERION® functional coatings (see table immobilization chemistryin the general multi-well section).
This coating is identical to the respective coating on NEXTERION® Slides. Please refer to the table in the section “General information coated slides” in order to find the appropriate coating chemistry for your specific application.
Product details

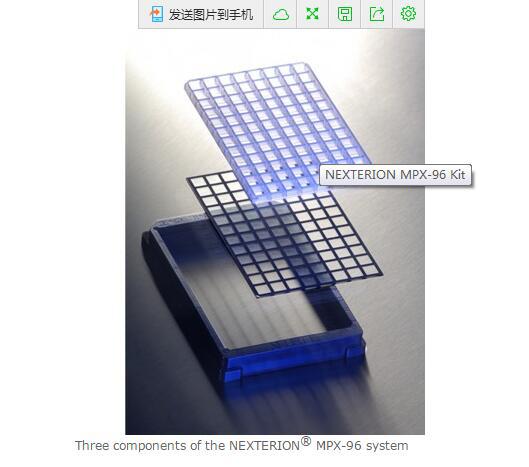

The three main components comprising the NEXTERION® MPX-96 system are available as a complete kit for evaluation, or as separate items:
High quality glass substrate

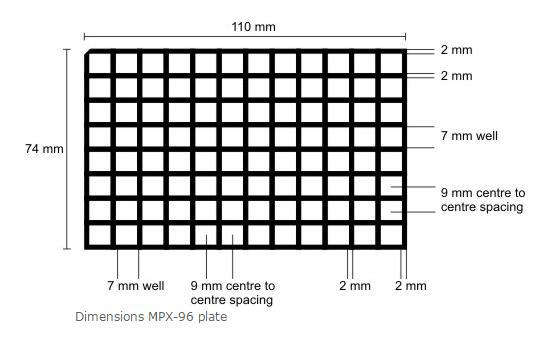

Microarray plate scanners typically read fluorescence signals from the spots through the bottom of the microplate. The NEXTERION® glass plate has a high transmittance of over 92 % and exceptional optical clarity for wavelengths used in fluorescence-based microarray assays. The plates are manufactured by melting extremely pure raw materials to ensure an excellent internal glass quality with absence of inclusions, bubbles, streaks or other defects. The ultra flat, glass plate is manufactured from low auto-fluorescent borosilicate glass with the dimensions 74 mm x 110 mm x 1 mm. The uniform flatness of the microplate glass ensures highly reproducible contact printing and scanning across the wells. The microarray quality glass plate is available with or without a 96-well hydrophobic patterning, and with a number of functional coatings, making it suitable for all microarray applications using DNA, peptide or protein probes. The glass plate may be printed separately or in the microtiter plate tray holder.
96-well silicone superstructure
The optional superstructure is self-adhesive and adheres to the 96-well patterning on the glass plate, increasing the well volume to between 30 and 130 μL. Placing the adhesive on the superstructure rather than on the glass plate, avoids the problem of adhesive contamination in the wells.
!! Attention: Please store superstructures flat, and do not bend as performance may be impaired !!
Microtiter plate holder with lid

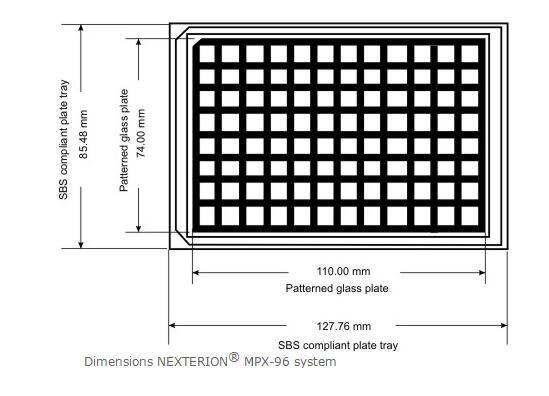

The SBS (Society for Biomolecular Screening) compliant rigid polycarbonate holder supports the glass substrate and superstructure. It also acts as an alignment jig when attaching the superstructure. The holder has molded alpha/ numeric well labels for easy identification. The four fixing pins firmly hold the glass plate at the four corners of the microtiter plate holder ensuring the glass is kept flat. The lid and sealing film limit sample contamination and evaporation during processing.
Instrument compatibility
The NEXTERION® MPX-96 plates are compatible with a wide range of commercially available microarray printers, plate washers and scanners.
Technical instructions
Further information about printing and processing the MPX-96 plates are available in the FAQsection.
Packaging and storage
NEXTERION® glass plates are available in single plate kits, or as 5-plate packs sealed in stable plastic boxes under an inert atmosphere. The plates are packaged separately to the plastic kit components to avoid any changes to the coatings caused by outgassing. The exact shelf life of the plates is determined by the coating and is indicated on the external packaging.
